1 微菌素的分类及其抗菌谱
表1 微菌素的分类及其特性Table 1 Classification and characteristics of microcins |
| 微菌素 Microcins | 菌种来源及质粒 Strain source and plasmid | 微菌素前 体长度 Pre- microcin length/ 个氨基酸 | 成熟微菌 素长度 Mature microcin length/ 个氨基酸 | 确认成熟 微菌素 分子质量 Confirmed mature microcin molecular mass/ku | 甘氨酸残基 Glycine residues/ % | 疏水性残基 Hydrophobic residues/ % | 参考文献 References |
|---|---|---|---|---|---|---|---|
| Ⅰ类Class Ⅰ | |||||||
| J25 | E. coli AY25 pTUC100 | 58 | 21 | 2.107 | 28.6 | 71.4 | Salomón等[15] |
| Y | S. enterica pAUSMDU 00010532_01 | 53 | 21 | 2.224 | 23.8 | 57.1 | Li等[17] |
| B17 | E. coli pMccB17 | 69 | 43 | 3.074 | 60.5 | 67.4 | Asensio等[12] |
| C7/C51 | E. coli pMccC7 | 7 | 7 | 1.177 | 14.3 | 42.9 | García- Bustos等[14] |
| D93 | E. coli LP93 pMccD93 | — | — | <1 | — | — | Martínez等[16] |
| Ⅱa类Class Ⅱa | |||||||
| V | E. coli pColV-K30 | 103 | 88 | 8.734 | 17 | 61.4 | Gilson等[19] |
| L | E. coli LR05 plasmid | 105 | 90 | 8.884 | 15.6 | 62.2 | Gaillard- Gendron等[18] |
| N/24 | E. coli 2424 p24-2 | 89 | 74 | 7.224 | 18.9 | 71.6 | Kaur等[20] |
| PDI/25 | E. coli 25 plasmid | 120 | 103 | 9.960 | 22.6 | 51.2 | Vassiliadis等[23] |
| S | E. coli G3/10 pSYM1 | 120 | 84 | 7.957 | 26.2 | 54.8 | Zschüttig等[21] |
| Ⅱb类Class Ⅱb | |||||||
| H47 | E. coli H47 | 75 | 60 | 5.696 | 26.7 | 76.7 | Laviña等[25] |
| I47 | E. coli H47 | 77 | 62 | 6.275 | 12.9 | 50 | Poey等[35] |
| M | E. coli Nissle 1917 | 92 | 77 | 8.115 | 19.5 | 55.8 | Patzer等[24] |
| G492 | K. pneumoniae RYC492 | 89 | 74 | 7.342 | 24.3 | 70.3 | Vassiliadis等[23] |
| E492 | K. pneumoniae RYC492 | 99 | 84 | 8.717 | 22.6 | 64.3 | Destoumieux- Garzón等[36] |
E. coli:大肠杆菌 Escherichia coli;S. enterica:肠道沙门氏菌 Salmonella enterica;K. pneumoniae:肺炎克雷伯菌 Klebsiella pneumoniae;Mcc:微菌素 microcin;plasmid:质粒。 |
2 微菌素的构效关系

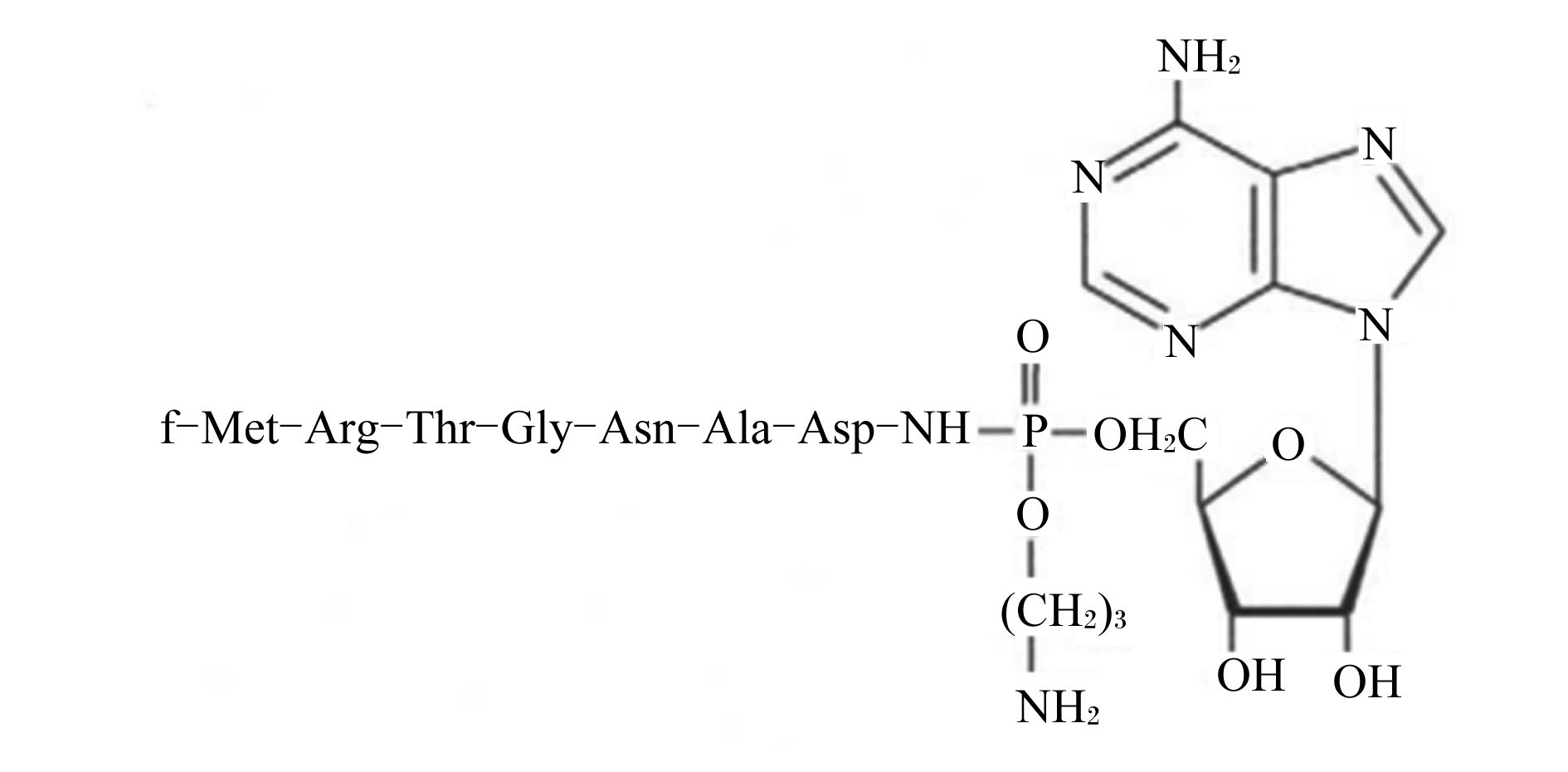

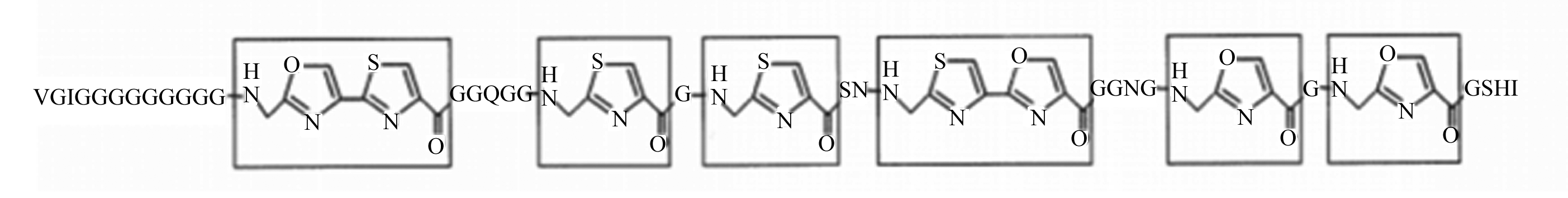

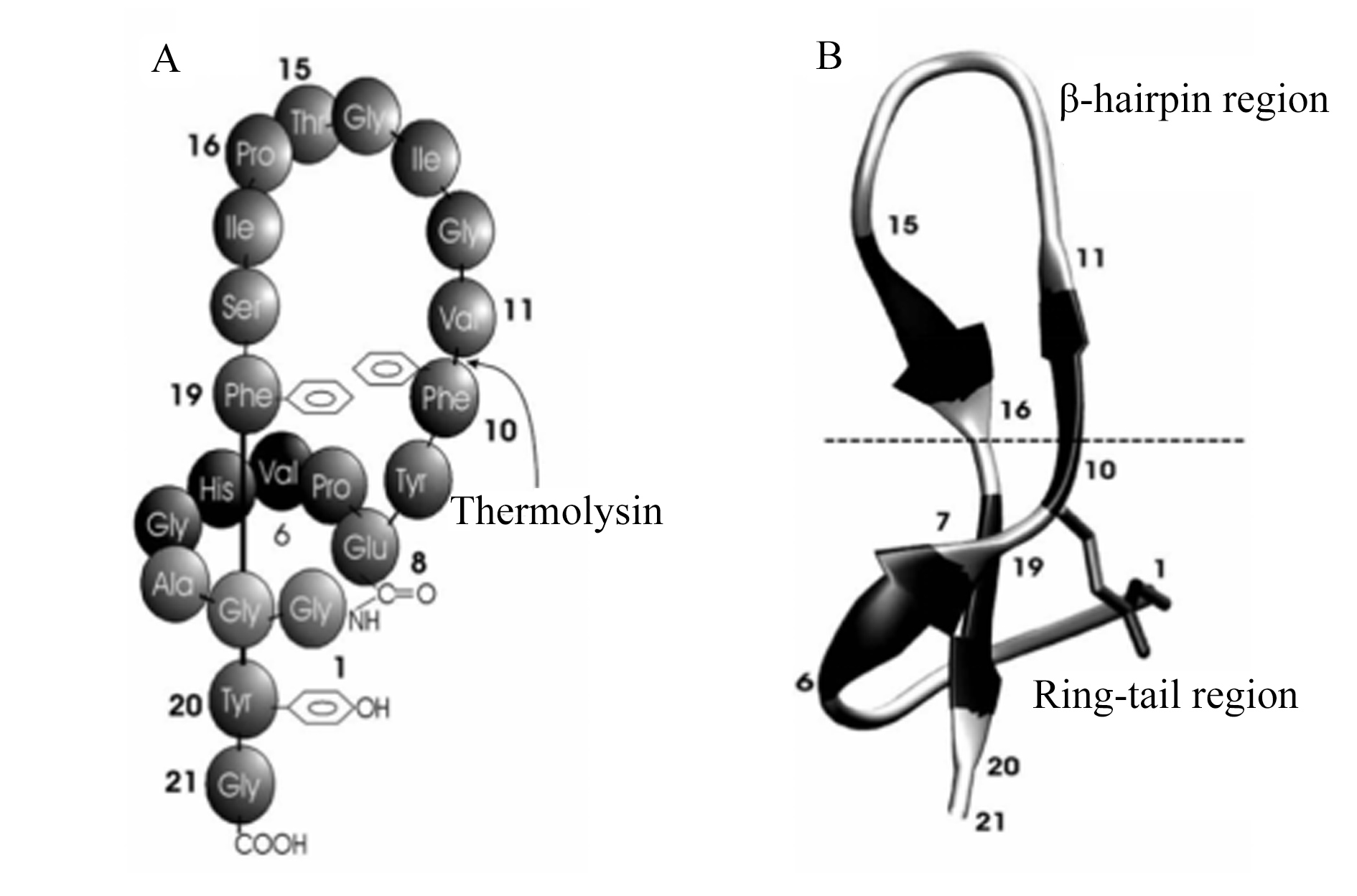

2.1 Ⅰ类微菌素

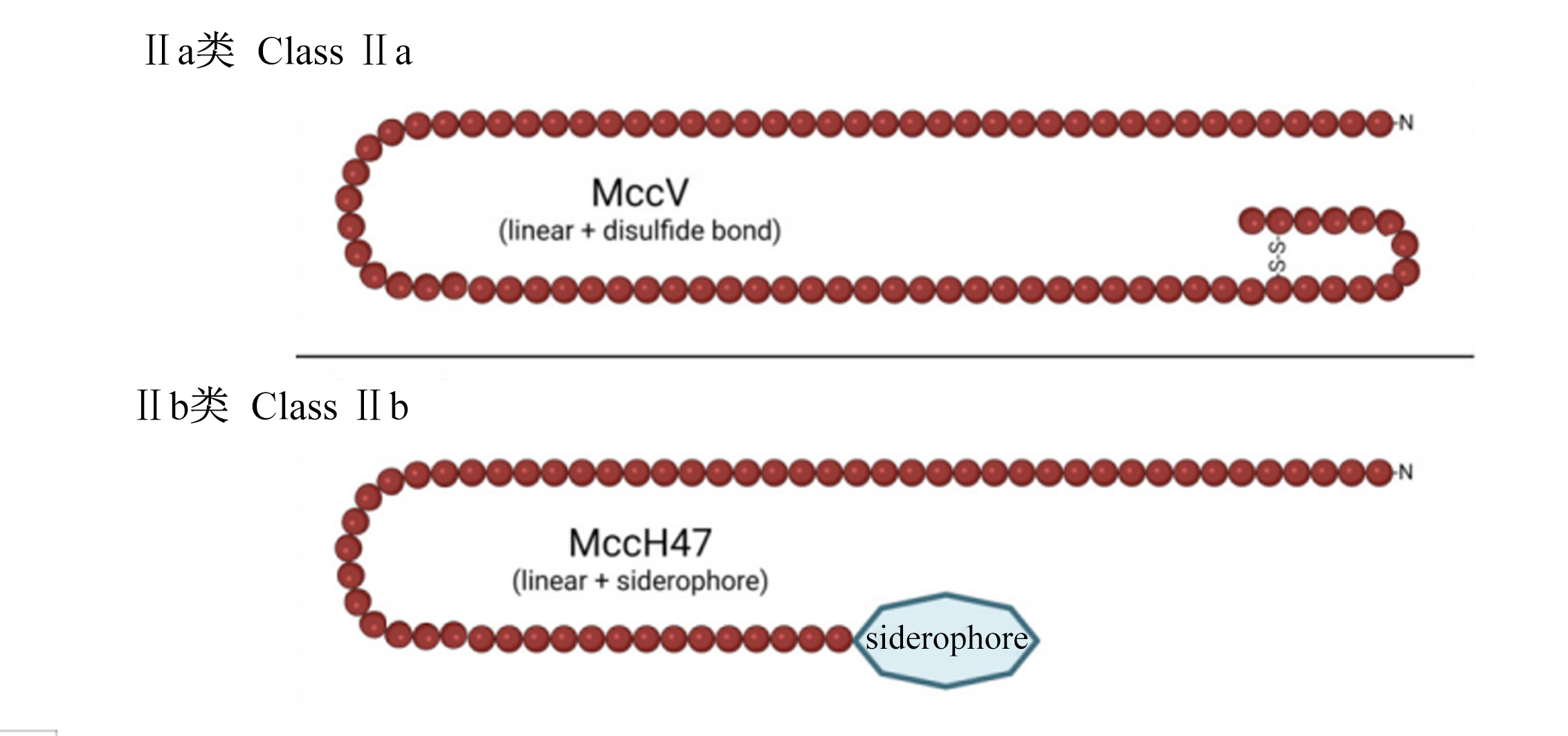

2.2 Ⅱ类微菌素

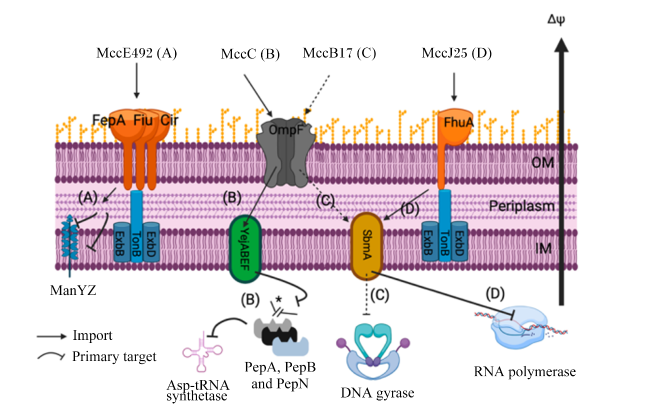

图5 部分微菌素的作用机制Mcc:微菌素 microcin;Δψ:电位差 potential difference;OM:外膜 outer membrane;IM:内膜 inner membrane;Periplasm:胞间质;Asp-tRNA synthetase:天冬氨酰-tRNA合成酶 aspartyl-tRNA synthetase;Pep:氨肽酶 aminopeptidase;DNA gyrase:DNA旋转酶;RNA polymerase:RNA聚合酶;Import:物质进入;Primary target:主要靶向。 Fig.5 Mechanism of action of some microcins[8] |
3 微菌素的生物合成机制
3.1 Ⅰ类微菌素

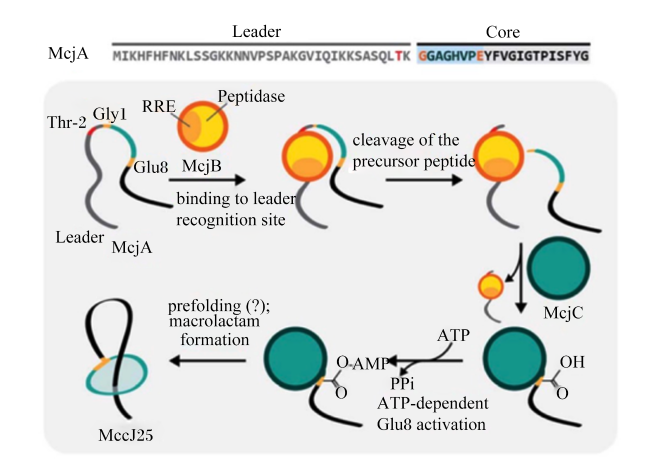

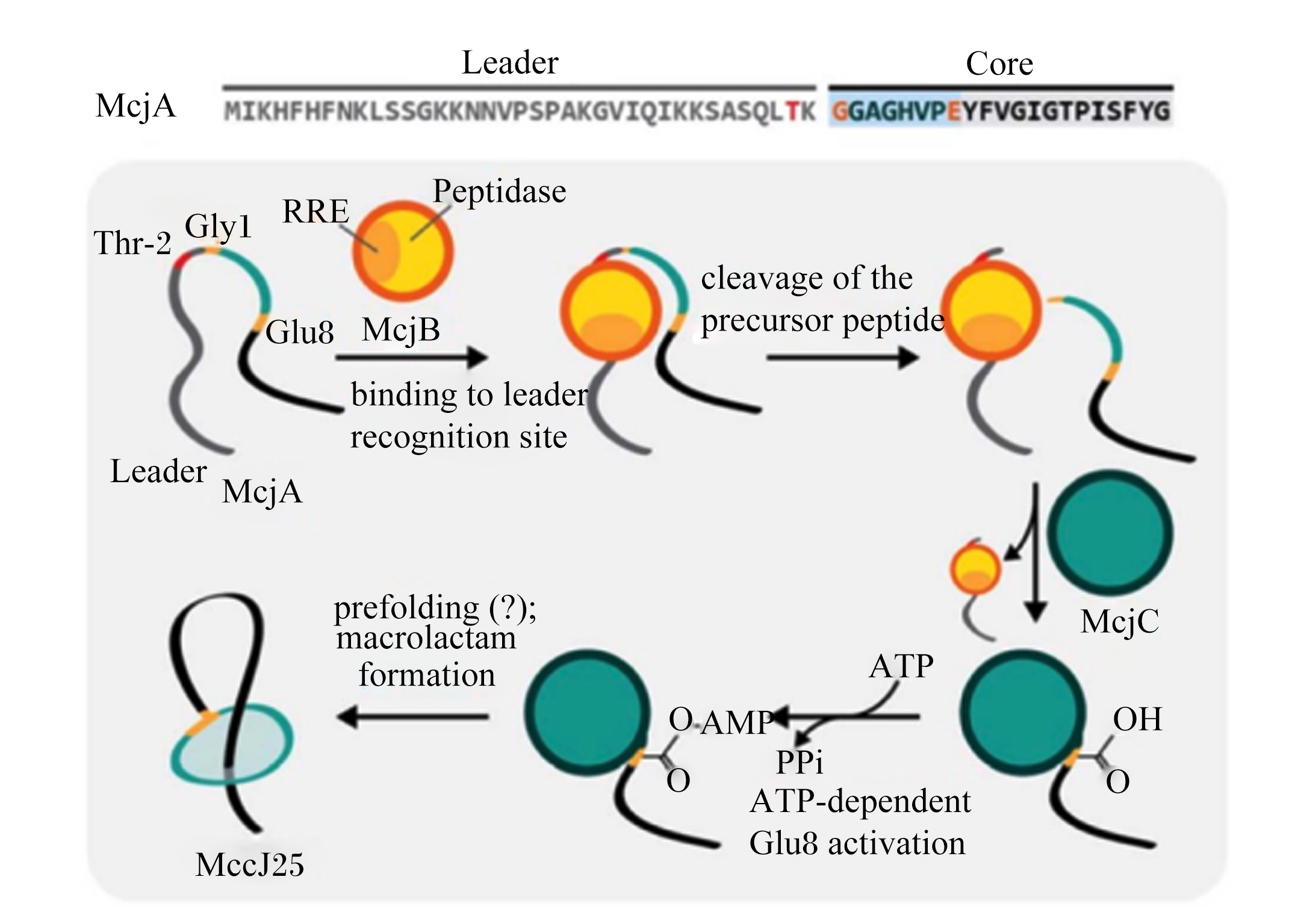

图6 微菌素J25的生物合成机制Leader:前导肽 leader peptide;Core:核心肽 core peptide;RRE:核糖体合成和翻译后修饰肽识别元件 ribosomally synthesized and posttranslationally modified peptide recognition element;Peptidase:肽酶;binding to leader recognition site:结合到前导识别位点;cleavage of the precursor peptide:前体肽的切割;MccJ25:微菌素J25 microcin J25;prefolding:预折叠;macrolactam formation:大环内酰胺形成;ATP-dependent Glu8 activation:ATP依赖的Glu8激活。 Fig.6 Biosynthesis mechanism of microcin J25[46] |
3.2 Ⅱ类微菌素

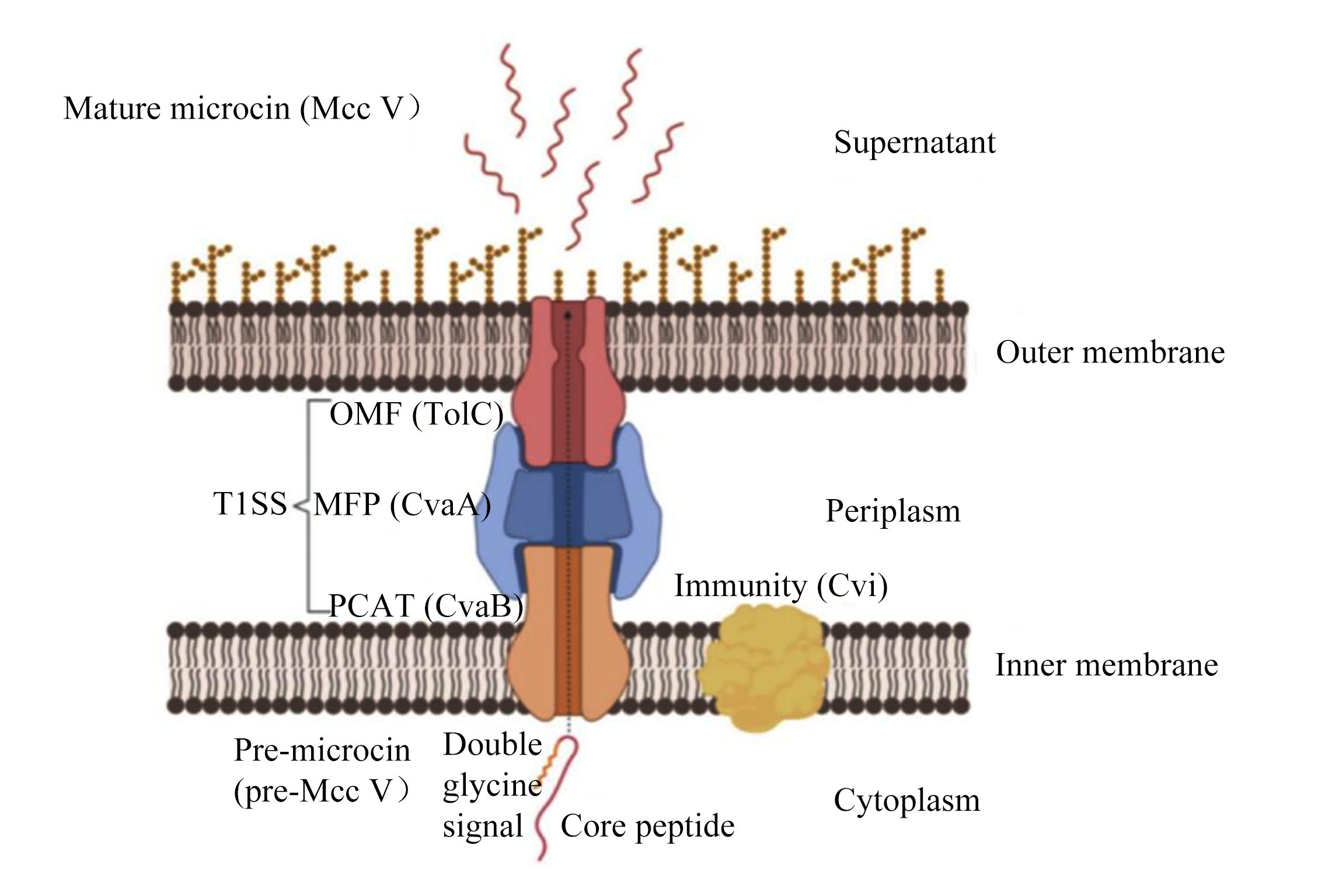

图9 微菌素V的Ⅰ型分泌系统Mature microcin (Mcc V):成熟微菌素V mature microcin V;Supernatant:上清液;Outer membrane:外膜;T1SS:Ⅰ型分泌系统 type Ⅰ secretion system;OMF:外膜因子 outer membrane factor;MFP:膜融合蛋白 membrane fusion protein;PCAT:吩嗪-1-羧酸转运蛋白 phenazine-1-carboxylic acid transporter;Periplasm:胞间质;Immunity:免疫;Inner membrane:内膜;Cytoplasm:细胞质;Double glycine signal:双甘氨酸信号;Core peptide:核心肽;Pre-microcin (pre-Mcc V):前体微菌素V precursor microcin V。 Fig.9 T1SS of microcin V[61] |
